BGD Gas Safety Control Valve Kit with Thermocouple Flame Failure Protection & Piezo Igniter - Universal Replacement Fits Patio Heaters, Fire Pits, Gas Grills (Auto Safety Shut-Off Valve)

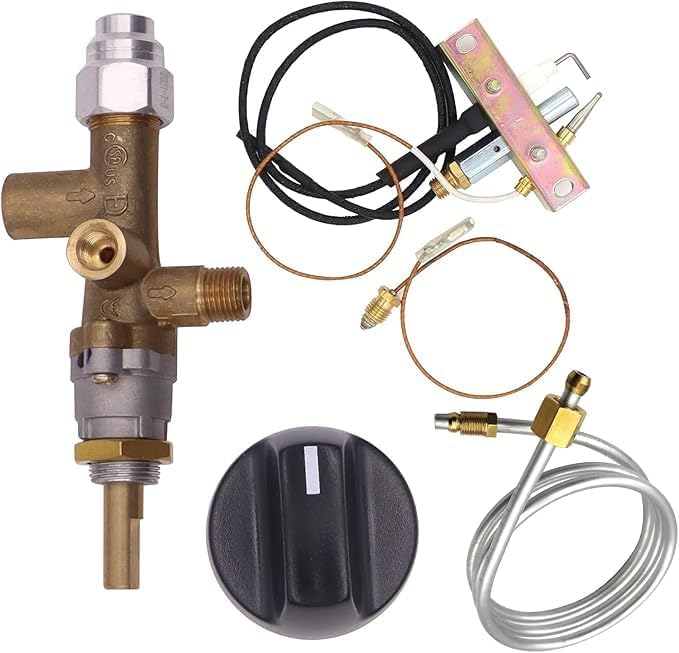

Pilot thread is M8*1 for copper tube Main control valve with inlet, outlet & Pilot with safetyWire length: 9.84inch on pilot burner & 7.87in for spare wire,Terminal: Flat 4.8mm universal Inlet valve thread M10*1, outlet thread 7/16", Pilot thread M8*1 Please refer to the example picture for the appropriate assembly and installation. Copper sealing rings need to be placed at both ends of the aluminum tube, and nuts and caps need to be used to fasten them to the valve and the pilot light respectively. Patio Heaters THP-ATM Anti Tilt Switch for Patio Heater,FD4 Dump Switch 250VAC 15A,125VAC 20A T125 2 pc 4mm Sealing rings,1 x 4mm aluminum tube 39.5 inches, 1 x internal thread M8*1 set of 4MM pipe, 1 x external thread M8*1 set of 4MM pipe Diameter of the aluminum tube is 0.16“(4mm),Valve Pilot Burner Tube Pipe Assembly,Gas Pilot Tubing Widely Used for propane natural gas pilot burner assembly, Replacement for Robertshaw gas valve and oil tubing Valve Pilot Burner Tube Pipe Assembly,Gas Pilot Tubing Both Side with M8*1 Male and Female Nut and 0.16"(4mm) compression fittin olive The entire kit is easy to replace and solves various problems at once.After the valve is installed as a whole, it is necessary to test whether each part is connected tightly. 15A switch weak Current Dump switch for Propane Gas Heaters, Minivolt Current Model for Gas Only with 4.8mm terminals, This model is suitable for room gas heater, outdoor patio heater and other Thermoelectric gas products For safety, if the heater tips or falls over, this device will automatically shut your heater off With two wires can connect dump switch for space heater Can be used in Garden Treasures heater model 0574422 sold at Lowes in 2014/2015. Will fit Home Depot models: HSS-A-SS, HSS-A-GH, GS4400BK, GS4400GD, GS4400SS

• Pilot thread is M8*1 for copper tube Main control valve with inlet, outlet & Pilot with safetyWire length: 9.84inch on pilot burner & 7.87in for spare wire,Terminal: Flat 4.8mm universal
• Patio Heaters THP-ATM Anti Tilt Switch for Patio Heater,FD4 Dump Switch 250VAC 15A,125VAC 20A T125 Valve Pilot Burner Tube Pipe Assembly,Gas Pilot Tubing Both Side with M8*1 Male and Female Nut and 0.16"(4mm) compression fittin olive
• The built-in thermocouple continuously detects the flame state. Once it accidentally stalls, it will immediately trigger the solenoid valve to cut off the gas supply, preventing gas leakage and causing danger.
• Precise temperature control: By adjusting the gas flow rate with a knob, the flame size can be controlled to achieve temperature regulation of the equipment. Reliable ignition: The integrated piezoelectric igniter can generate high-voltage sparks, igniting the main burner with one click without the need for additional ignition tools. Universal replacement: As a maintenance accessory, it can directly replace old or faulty valve components and restore the safe operation of equipment.
• Special Reminder: When installing the aluminum tube to connect the valve and the constant open flame, first check whether the two ends of the aluminum tube are blocked. If you need to cut the aluminum tube, please use professional tube cutting equipment (do not use scissors and cutting machines). Be careful not to flatten the aluminum tube, and do not force it when bending it.
